Aerial Helix Portable Spiral

Inspired by Imogen Gunter

Choose Your Aerial Helix Configuration

The Aerial Helix is a modular portable aerial spiral for training and performance. Compare the 2-, 3- and 4-piece configurations below to see how their lengths change under static test loads.

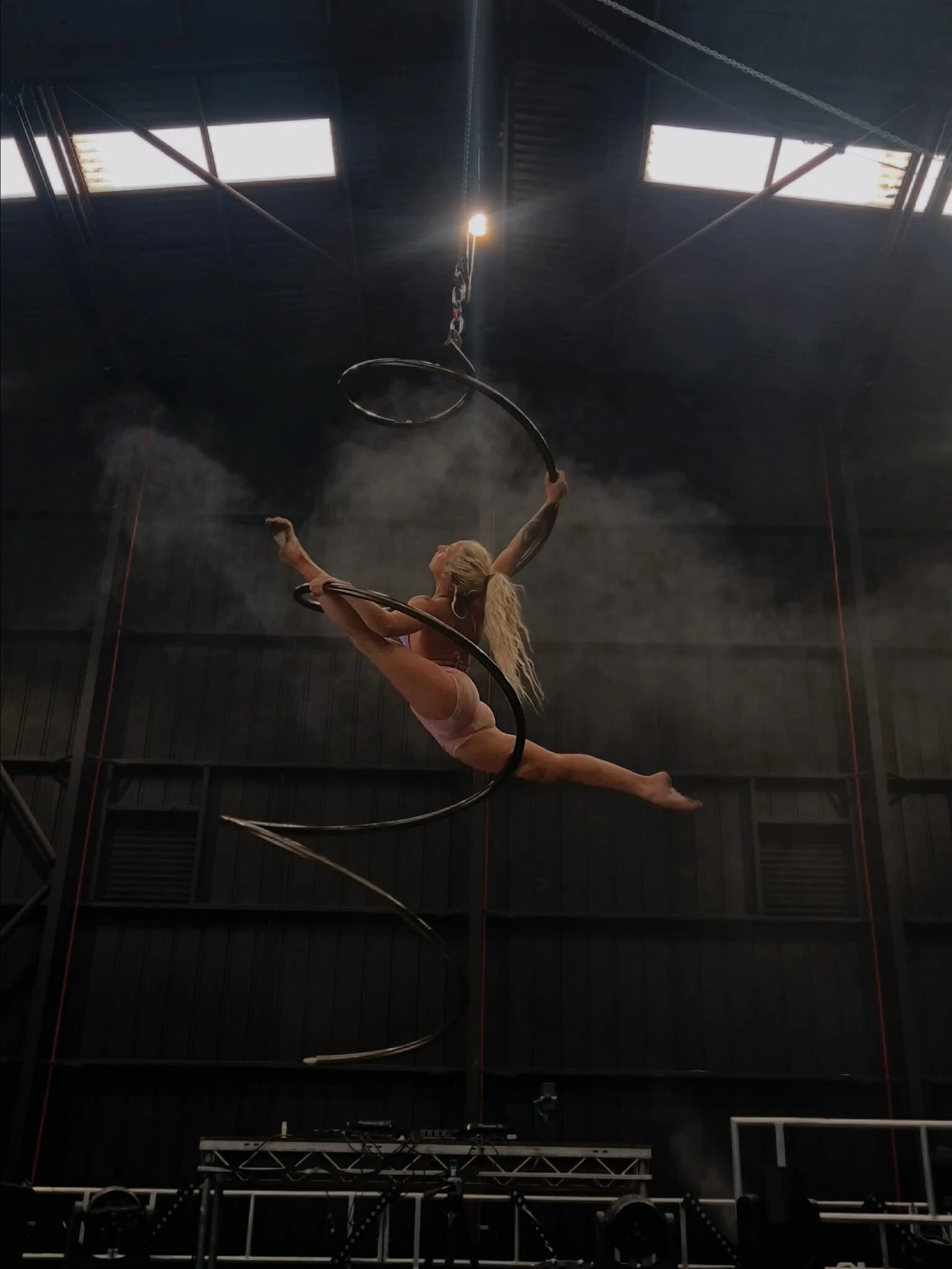

Imogen Gunter performing on the Aerial Helix Portable Spiral
Imogen Gunter on the Aerial Helix Portable Spiral.

Helix Length & Deflection Guide

Approximate dimensions and static test results
Configuration Unloaded length Helix weight 50 kg static test load 90 kg static test load
2-piece Helix 195 cm 15 kg +11 cm
206 cm loaded
+26 cm
221 cm loaded
3-piece modular Helix 265 cm 22.5 kg +30 cm
295 cm loaded
+44 cm
309 cm loaded
4-piece modular Helix 370 cm 29.5 kg +33 cm
403 cm loaded
+50 cm
420 cm loaded

The bold figures show the measured extension under each static test load. Approximate loaded lengths are calculated by adding that extension to the unloaded length. Refer to the apparatus specifications for working load limits.

Allow for additional rigging length

The lengths in the table are for the Helix apparatus only. When planning your setup, allow for the installed length of your complete rigging system, including any strop, karabiners, swivel and other attachment hardware.

Ask a qualified aerial rigger to confirm the total height and clearance needed during use.

Assembly, Hanging & Care Guide

Request the guide for assembly, hanging, inspection and care information. The Aerial Helix is designed for one user at a time.

Request the Helix Guide
